VersaChrome HC 704/13

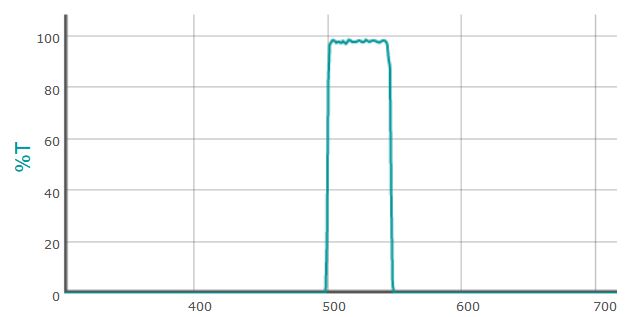

Product information "VersaChrome HC 704/13"
Dimension 25,2 x 35,6 x 2 mm
Transmission Band (0°) Tavg > 90%
Center Wavelength (0°) 703.8 nm (minimum)
Guaranteed Minimum Bandwidth (0°) 13 nm
FWHM Bandwidth (0°) (nominal) 20 nm
Blocking Band (0°) ODavg > 6 275 - 1100 nm
Cuton Transition Width (0°) 2% (from blocking to transmission)
Cutoff Transition Width (0°) 3% (from transmission to blocking)
Transmission Band (60°) Tavg > 85%
Center Wavelength (60°) 627.7 nm (minimum)
Guaranteed Minimum Bandwidth (60°) 13 nm
FWHM Bandwidth (nominal) (60°) 20 nm
Blocking Band (60°) ODavg > 6 275 - 925 nm
Cuton Transition Width (60°) 3% (from blocking to transmission)
Cutoff Transition Width (60°) 2.5% (from transmission to blocking)
Transmission Band (0°) Tavg > 90%
Center Wavelength (0°) 703.8 nm (minimum)
Guaranteed Minimum Bandwidth (0°) 13 nm
FWHM Bandwidth (0°) (nominal) 20 nm
Blocking Band (0°) ODavg > 6 275 - 1100 nm
Cuton Transition Width (0°) 2% (from blocking to transmission)
Cutoff Transition Width (0°) 3% (from transmission to blocking)
Transmission Band (60°) Tavg > 85%
Center Wavelength (60°) 627.7 nm (minimum)
Guaranteed Minimum Bandwidth (60°) 13 nm
FWHM Bandwidth (nominal) (60°) 20 nm
Blocking Band (60°) ODavg > 6 275 - 925 nm
Cuton Transition Width (60°) 3% (from blocking to transmission)
Cutoff Transition Width (60°) 2.5% (from transmission to blocking)
Downloads "VersaChrome HC 704/13"
Specifications
| OEM/Original number: | TBP01-704/13-25x36 |
|---|---|
| Transmission Band 1: | Tavg > 90% |
| Center Wavelength 1: | 703.8 nm (minimum) |
| Blocking Band 1: | ODavg > 6 275 - 1100 nm |
| FWHM Bandwidth 1 (nominal): | 20 nm |
| Cutoff Transition Width: | 3% (from transmission to blocking) |
| Guaranteed Minimum Bandwidth 1: | 13 nm |
| Cuton Transition Width: | 2% (from blocking to transmission) |
| Blocking Band 1 (60 deg): | ODavg > 6 275 - 925 nm |
| Transmission Band 1 (60 deg): | Tavg > 85% |
| Center Wavelength 1 (60 deg): | 627.7 nm (maximum) |
| Cutoff Transition Width (60 deg: | 2.5% (from transmission to blocking) |
| Cuton Transition Width (60 deg): | 3% (from blocking to transmission) |
| Angle of Incidence: | 0 - 60 degrees |
| Cone Half-angle: | 0 degrees |
| Optical Damage Rating: | Not tested |
| Filter Effective Index: |
1.82 Understanding `Effective Index of Refraction` neff |
| Substrate type: | low-autofluorescence optical quality glass |
| Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
| Transverse Tolerance: | ± 0.1 mm |
| Filter Thickness (unmounted): | 2.0 mm |
| Filter Thickness Tolerance (unm: | ± 0.1 mm |
| Clear Aperture: | ≥ 80% (elliptical) |
| Scratch-Dig: | 60-40 |
| Substrate thickness: | 2.0 mm |
| Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
| Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
| CWL/EdgeWL/NotchWL (nm): | 704 |
| Free aperture: | = 80% (elliptical) |
| Size: | 25,2 x 35,6 mm |
| Bandwith (nm): | 13 |
| Application (Filter): | Standard/Fluoreszenz |
| Number of Bands/Edges/Notches: | 1 |
| Type (optical filters): | Bandpass tunable |
| Blocking level (OD): | OD 6 |
| Substrate Thickness: | 2,0 mm |
| Scratch-Dig: | 60-40 |
