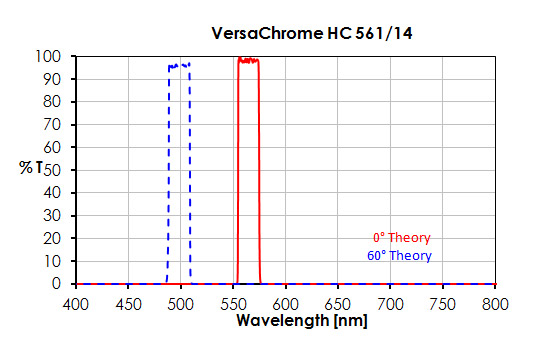

durchschn. Transmission (0°) > 90%
Zentralwellenlänge (0°) 561 nm
Garantierte Minimale Bandbreite (0°) 14 nm
FWHM Bandbreite (0°) (nominal) 20 nm
durchschn. Blockung (0°) OD > 6 275 - 1100 nm
Kantensteilheit 2,5% (Blockung zu Transmission)
Kantensteilheit 2% (Transmission zu Blockung)
Transmission Band (60°) Tavg > 85%
Zentralwellenlänge (60° ) 501,5 nm
Garantierte Minimale Bandbreite (60°) 14 nm
FWHM Bandbreite (nominal) (60°) 20 nm
durchschn. Blockung (60°) OD > 6 275 - 925 nm
Kantensteilheit (60°) 2.5% (from blocking to transmission)
Kantensteilheit (60°) 2% (from transmission to blocking)
Nominaler effektiver Brechungsindex 1,83
25,2 x 35,6 x 2 mm
OEM-/Originalnummer: | TBP01-561/14-25x36 |
---|---|
Transmission Band 1: | Tavg > 90% |
Center Wavelength 1: | 561 nm (minimum) |
Blocking Band 1: | ODavg > 6 275 - 1100 nm |
FWHM Bandwidth 1 (nominal): | 20 nm |
Cutoff Transition Width: | 2% (from transmission to blocking) |
Guaranteed Minimum Bandwidth 1: | 14 nm |
Cuton Transition Width: | 2% (from blocking to transmission) |
Blocking Band 1 (60 deg): | ODavg > 6 275 - 925 nm |
Transmission Band 1 (60 deg): | Tavg > 85% |
Center Wavelength 1 (60 deg): | 501.5 nm (maximum) |
Cutoff Transition Width (60 deg: | 2% (from transmission to blocking) |
Cuton Transition Width (60 deg): | 2.5% (from blocking to transmission) |
Angle of Incidence: | 0 - 60 degrees |
Cone Half-angle: | 0 degrees |
Optical Damage Rating: | Not tested |
Filter Effective Index: |
1.83 Understanding `Effective Index of Refraction` neff |
Substrate type: | low-autofluorescence optical quality glass |
Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
Transverse Tolerance: | ± 0.1 mm |
Filter Thickness (unmounted): | 2.0 mm |
Filter Thickness Tolerance (unm: | ± 0.1 mm |
Clear Aperture: | ≥ 80% (elliptical) |
Scratch-Dig: | 60-40 |
Substrate thickness: | 2.0 mm |
Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
Abmessungen: | 25,2 x 35,6 mm |
Anzahl Bänder/Kanten/Notch: | 1 |
Art des Filters: | BP Tunable |
CWL/EdgeWL/NotchWL (nm): | 561 |
Anwendung (Filter): | Standard/Fluoreszenz |
Bandbreite (nm): | 14 |
Blockungsstärke (OD): | OD 6 |
Substratdicke: | 2,0 mm |
Scratch-Dig: | 60-40 |
freie Apertur: | = 80% (elliptical) |
