650-1300 nm Spiegel Imaging
Produktinformationen "650-1300 nm Spiegel Imaging"

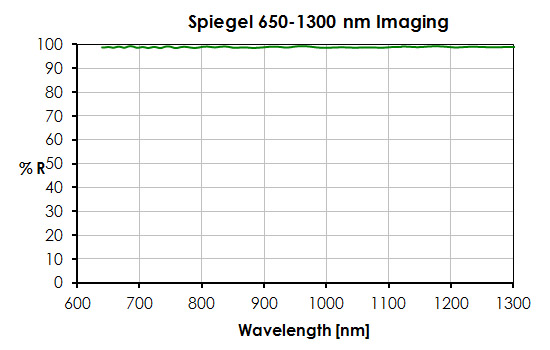

Reflexion > 98% 650 - 1300 nm
Reflexion (s-pol) > 99,5% 650 - 1300 nm
Reflexion (p-pol) > 96% 650 - 1300 nm
Abmessung 25,2 x 35,6 x 1,1 mm
Reflexion (s-pol) > 99,5% 650 - 1300 nm
Reflexion (p-pol) > 96% 650 - 1300 nm
Abmessung 25,2 x 35,6 x 1,1 mm
Spezifikationen
| OEM-/Originalnummer: | MGP01-650-1300-25x36 |
|---|---|
| Reflection Band 1: | Ravg > 98% 650 - 1300 nm |
| Reflection Band 1 (p-pol): | Ravg > 96% 650 - 1300 nm |
| Reflection Band 1 (s-pol): | Ravg > 99.5% 650 - 1300 nm |
| Reflection Band 2: | Ravg > 98% 650 - 1300 nm |
| Angle of Incidence: | 45.0 ± 1.5 degrees |
| Optical Damage Rating: | Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs. |
| Substrate type: | low-autofluorescence optical quality glass |
| Flatness / RWE Classification: | Image-splitting |
| Reflected Wavefront Error: | < 2λ P-V RWE @ 632.8 nm |
| Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
| Transverse Tolerance: | ± 0.1 mm |
| Filter Thickness (unmounted): | 1.05 mm |
| Filter Thickness Tolerance (unm: | ± 0.05 mm |
| Clear Aperture: | ≥ 80% (elliptical) |
| Scratch-Dig: | 60-40 |
| Substrate thickness: | 1.05 mm |
| Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
| Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
| : | ---------------------------------------------- |
| Abmessungen: | 25,5 x 36 mm |
| Garantie: | 10 Jahre |
| Substratdicke: | 1 mm |
| Scratch-Dig: | 60-40 |
