900/11 VersaChrome HC Bandpassfilter
Produktinformationen "900/11 VersaChrome HC Bandpassfilter"

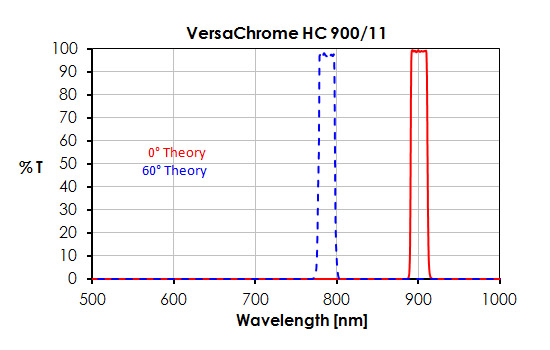

Durchstimmbar von 0°-60° (900-787 nm)
Transmission >90% über 11 nm
Nominaler effektiver Brechungsindex 1,79
Blockung >OD 6 von 275 - 1100 nm außerhalb des Bandpasses
Abmessung 25,2 x 35,6 x 2 mm
Transmission >90% über 11 nm
Nominaler effektiver Brechungsindex 1,79
Blockung >OD 6 von 275 - 1100 nm außerhalb des Bandpasses
Abmessung 25,2 x 35,6 x 2 mm
Spezifikationen
| OEM-/Originalnummer: | TBP01-900/11-25x36 |
|---|---|
| Transmission Band 1: | Tavg > 90% |
| Center Wavelength 1: | 900 nm (minimum) |
| Blocking Band 1: | ODavg > 6 275 - 1100 nm |
| FWHM Bandwidth 1 (nominal): | 20 nm |
| Cutoff Transition Width: | 3% (from transmission to blocking) |
| Guaranteed Minimum Bandwidth 1: | 11 nm |
| Cuton Transition Width: | 2% (from blocking to transmission) |
| Blocking Band 1 (60 deg): | ODavg > 6 275 - 925 nm |
| Transmission Band 1 (60 deg): | Tavg > 85% |
| Center Wavelength 1 (60 deg): | 787 nm (maximum) |
| Cutoff Transition Width (60 deg: | 3% (from transmission to blocking) |
| Cuton Transition Width (60 deg): | 3% (from blocking to transmission) |
| Angle of Incidence: | 0 - 60 degrees |
| Cone Half-angle: | 0 degrees |
| Optical Damage Rating: | Not tested |
| Substrate type: | low-autofluorescence optical quality glass |
| Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
| Transverse Tolerance: | ± 0.1 mm |
| Filter Thickness (unmounted): | 2.0 mm |
| Filter Thickness Tolerance (unm: | ± 0.1 mm |
| Clear Aperture: | ≥ 80% (elliptical) |
| Scratch-Dig: | 60-40 |
| Substrate thickness: | 2.0 mm |
| Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
| Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
| : | ---------------------------------------------- |
| Abmessungen: | 25,2 x 35,6 mm |
| Anzahl Bänder/Kanten/Notch: | 1 |
| Art des Filters: | BP Tunable |
| Blockungsstärke: | OD 6 |
| CWL/EdgeWL/NotchWL (nm): | 900 |
| Anwendung (Filter): | Standard/Fluoreszenz |
| Bandbreite (nm): | 11 |
| Substratdicke: | 2,0 mm |
| Scratch-Dig: | 60-40 |
| freie Apertur: | >= 80% (elliptical) |
