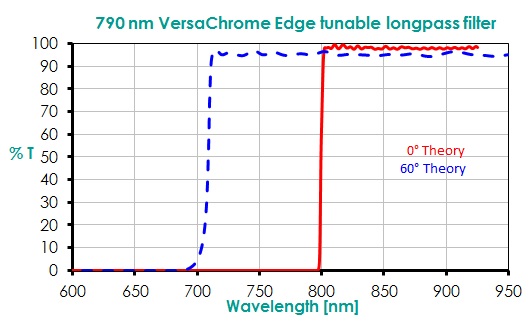

790 nm VersaChrome Edge tunable Longpass Filter
Product information "790 nm VersaChrome Edge tunable Longpass Filter"
AOI 0°
Dimension 25,2 x 35,6 x 2 mm
Effective Index 1,75
--
avg. Transmission at AOI 0° > 93% over 103 nm
Edge Wavelength at AOI 0°: 790 nm
avg. blocking at AOI 0°: OD > 6 from 613 nm - 774 nm
Cuton Transition Width 2,5% (blocking to transmission)
--
avg. Transmission at AOI 60° > 90% over 92 nm
Edge Wavelength ati AOI 60°: 704 nm
avg. blocking ati AOI 60°: OD > 6 from 613 nm - 686 nm
Cuton Transition Width 3% (blocking to transmission)
Dimension 25,2 x 35,6 x 2 mm
Effective Index 1,75
--
avg. Transmission at AOI 0° > 93% over 103 nm
Edge Wavelength at AOI 0°: 790 nm
avg. blocking at AOI 0°: OD > 6 from 613 nm - 774 nm
Cuton Transition Width 2,5% (blocking to transmission)
--
avg. Transmission at AOI 60° > 90% over 92 nm
Edge Wavelength ati AOI 60°: 704 nm
avg. blocking ati AOI 60°: OD > 6 from 613 nm - 686 nm
Cuton Transition Width 3% (blocking to transmission)
Spezifikationen
| OEM/Original number: | TLP01-790-25x36 |
|---|---|
| Transmission Band 1: | Tavg > 93% over 101 nm |
| Edge Wavelength (0 deg): | 790 nm (minimum) |
| Blocking Band 1: | ODavg > 6 613 - (0.98*Edge Wavelength 0deg) nm |
| Cuton Transition Width: | 2.5% (from blocking to transmission) |
| Blocking Band 1 (60 deg): | ODavg > 6 613 - (0.975*Edge Wavelength 60deg) nm |
| Transmission Band 1 (60 deg): | Tavg > 90% over 90 nm |
| Edge Wavelength (60 deg): | 704 nm (maximum) |
| Cuton Transition Width (60 deg): | 3% (from blocking to transmission) |
| Angle of Incidence: | 0 - 60 degrees |
| Cone Half-angle: | 0 degrees |
| Optical Damage Rating: | Not tested |
| Substrate type: | low-autofluorescence optical quality glass |
| Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
| Transverse Tolerance: | ± 0.1 mm |
| Filter Thickness (unmounted): | 2.0 mm |
| Filter Thickness Tolerance (unm: | ± 0.1 mm |
| Clear Aperture: | ≥ 80% (elliptical) |
| Scratch-Dig: | 60-40 |
| Substrate thickness: | 2.0 mm |
| Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
| Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
| : | ---------------------------------------------- |
| CWL/EdgeWL/NotchWL (nm): | 790 |
| Free Aperture: | = 80% (elliptical) |
| Optical Density: | OD 6 |
| Size: | 25,2 x 35,6 mm |
| Application (Optical Filters): | Standard / Fluorescence |
| Number of Bands / Edges / Notches: | 1 |
| Type (Optical Filters): | Longpass tunable |
| Substrate Thickness: | 2.0 mm |
| Scratch-Dig: | 60-40 |
