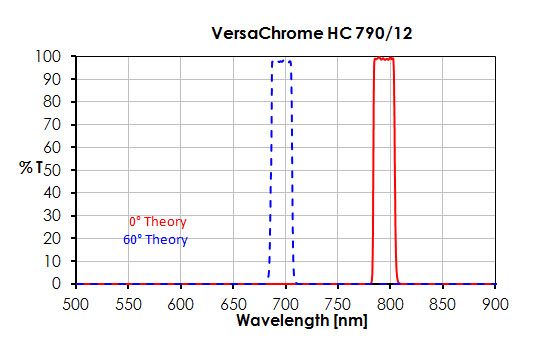

VersaChrome HC 790/12
Product information "VersaChrome HC 790/12"
Dimension 25,2 x 35,6 x 2 mm
Transmission Band (0°) Tavg > 90%
Center Wavelength (0°) 790 nm (minimum)
Guaranteed Minimum Bandwidth (0°) 12 nm
FWHM Bandwidth (0°) (nominal) 20 nm
Blocking Band (0°) ODavg > 6 275 - 1100 nm
Cuton Transition Width (0°) 2% (from blocking to transmission)
Cutoff Transition Width (0°) 3% (from transmission to blocking)
Transmission Band 1 (60°) Tavg > 85%
Center Wavelength 1 (60°) 703.8 nm (minimum)
Guaranteed Minimum Bandwidth (60°) 12 nm
FWHM Bandwidth (nominal) (60°) 20 nm
Blocking Band (60°) ODavg > 6 275 - 925 nm
Cuton Transition Width (60°) 3% (from blocking to transmission)
Cutoff Transition Width (60°) 3% (from transmission to blocking)
Transmission Band (0°) Tavg > 90%
Center Wavelength (0°) 790 nm (minimum)
Guaranteed Minimum Bandwidth (0°) 12 nm
FWHM Bandwidth (0°) (nominal) 20 nm
Blocking Band (0°) ODavg > 6 275 - 1100 nm
Cuton Transition Width (0°) 2% (from blocking to transmission)
Cutoff Transition Width (0°) 3% (from transmission to blocking)
Transmission Band 1 (60°) Tavg > 85%
Center Wavelength 1 (60°) 703.8 nm (minimum)
Guaranteed Minimum Bandwidth (60°) 12 nm
FWHM Bandwidth (nominal) (60°) 20 nm
Blocking Band (60°) ODavg > 6 275 - 925 nm
Cuton Transition Width (60°) 3% (from blocking to transmission)
Cutoff Transition Width (60°) 3% (from transmission to blocking)
Spezifikationen
| OEM/Original number: | TBP01-790/12-25x36 |
|---|---|
| Transmission Band 1: | Tavg > 90% |
| Center Wavelength 1: | 790 nm (minimum) |
| Blocking Band 1: | ODavg > 6 275 - 1100 nm |
| FWHM Bandwidth 1 (nominal): | 20 nm |
| Cutoff Transition Width: | 3% (from transmission to blocking) |
| Guaranteed Minimum Bandwidth 1: | 12 nm |
| Cuton Transition Width: | 2% (from blocking to transmission) |
| Blocking Band 1 (60 deg): | ODavg > 6 275 - 925 nm |
| Transmission Band 1 (60 deg): | Tavg > 85% |
| Center Wavelength 1 (60 deg): | 703.8 nm (maximum) |
| Cutoff Transition Width (60 deg: | 3% (from transmission to blocking) |
| Cuton Transition Width (60 deg): | 3% (from blocking to transmission) |
| Angle of Incidence: | 0 - 60 degrees |
| Cone Half-angle: | 0 degrees |
| Optical Damage Rating: | Not tested |
| Substrate type: | low-autofluorescence optical quality glass |
| Transverse Dimensions (L x W): | 25.2 mm x 35.6 mm |
| Transverse Tolerance: | ± 0.1 mm |
| Filter Thickness (unmounted): | 2.0 mm |
| Filter Thickness Tolerance (unm: | ± 0.1 mm |
| Clear Aperture: | ≥ 80% (elliptical) |
| Scratch-Dig: | 60-40 |
| Substrate thickness: | 2.0 mm |
| Orientation: | Reflective surface marked with part number - Orient in direction of incoming light |
| Other physical specs: | Standard Specifications of Our Filters and Beam Splitters |
| : | ---------------------------------------------- |
| CWL/EdgeWL/NotchWL (nm): | 790 |
| Free Aperture: | >= 80% (elliptical) |
| Optical Density: | OD 6 |
| Size: | 25,2 x 35,6 mm |
| Bandwidth (nm): | 12 |
| Application (Optical Filters): | Standard / Fluorescence |
| Number of Bands / Edges / Notches: | 1 |
| Type (Optical Filters): | Bandpass tunable |
| Substrate Thickness: | 2,0 mm |
| Scratch-Dig: | 60-40 |
